Acid Resistant Bricks Details

Chemiprotect Engineers offer high quality acid & alkali resistant unglazed clay bricks (confirming to class-I of IS-4860 & ASTM C-279 Type II) for application of acid/alkali resistant lining.

FEATURES & ADVANTAGES

  • CHEMICAL RESISTANCE Resistant to corrosive attack from most Acid/Alkali/Solvents/Chemicals.
  • ABRASION RESISTANCE Resistant to high abrasion even when exposed to high chemical conditions
  • HIGH TEMPERATURE RESISTANCE
  • THERMAL SHOCK RESISTANCE Can withstand temperature change even under immersion conditions.
  • HIGH IMPACT STRENGTH

USES

  • Chemical Resistant Flooring, Drain & Pit Lining
  • Acid Mfg. plant Towers & Columns
  • Effluent/Sewerage Treatment Plants
  • Vessels & Tanks Lining
  • Chimney, Flue & FGD Plant
  • Chutes/Hoppers/Tanks/Silos
  • Secondary Containment Area

LIMITATIONS

  • Not suitable if exposed to HF acid, fluoride, fluoride salt solution
  • Not suitable if exposed to strong, hot, high conc. Of Caustic solution
  • Sudden (very rapid) temperature change
ColorOff White

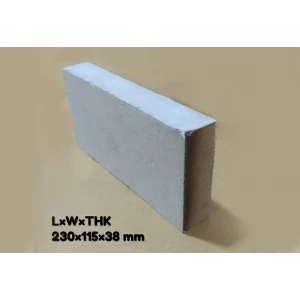

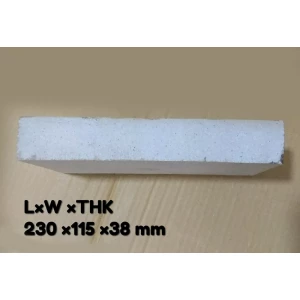

Normal Standard Size230x115mm & 240x115mm
Normal Standard Thickness25, 38, 65 & 75mm
Slip ResistanceExcellent
Standard Coverage Per M238 Pics

PHYSICAL PROTERTIES

 Class-IClass-II
Bulk Density (Approx.)2.2 to 2.3 g/cc 2.2 to 2.3 g/cc2.2 to 2.3 g/cc 2.2 to 2.3 g/cc
Compressive Strength kg/cm2 Min.700500
Water Absorption % Max.22
Flexural Strength kg/cm2 Min10070
Resistance To AcidLoss in wt. shall not exceed 1.5%Loss in wt. shall not exceed 4%

ANALYSIS

SiO270 to 72%
Al2O321 to 24%
Fe2O31.2%
K2) + Na2)2 to 3%
